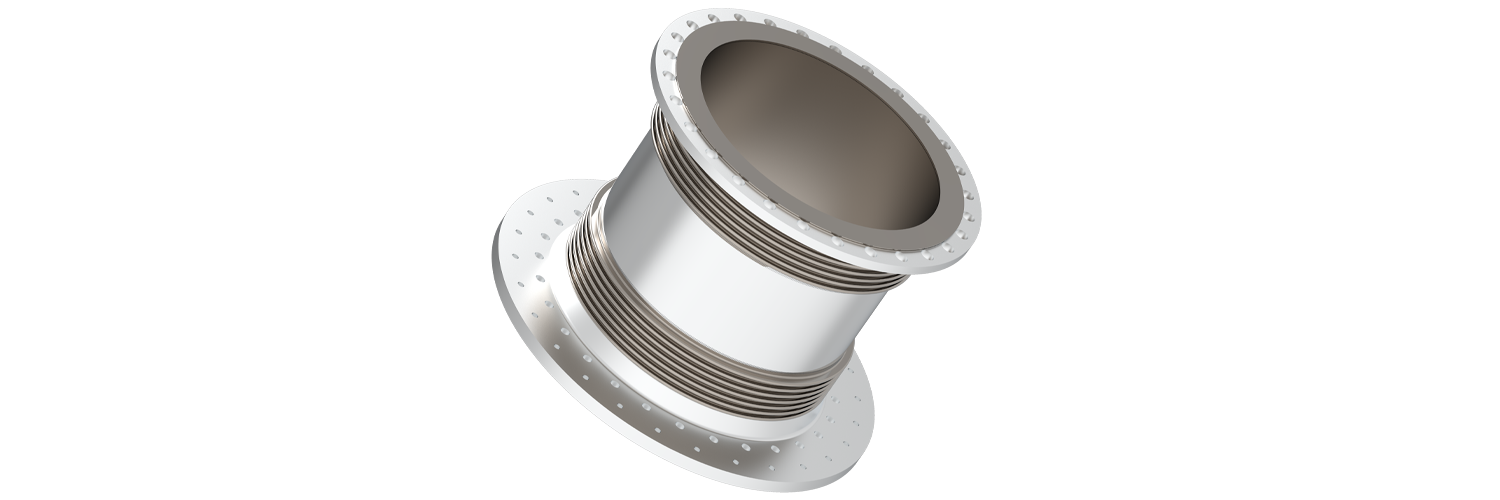

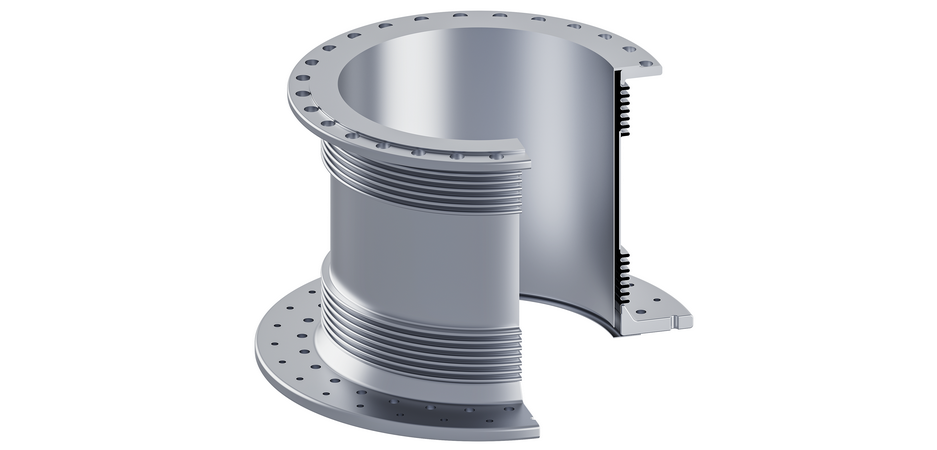

Expansion joints accommodate movement and absorb vibration in a piping system and, in doing so, they protect adjacent piping and equipment from damage.

Both Continuous Catalytic Reforming (CCR) platforming/reforming process and Fluid Catalytic Cracking (FCC) technology involves high tech Expansion Joints and each technology provider or licensor has exclusive designs for these components. Saiptech has worked with the major licensors and is familiar with the designs.

Key Features

• Multi-ply bellows for maximum cycle life under stringent conditions
• Bellow material: 304, 316L, 321, Inconel 625, 600 & 825, Hastelloy C-22 & C-276, Monel 400
• Pipe sizes of 2-1/2” through 30,” with tooling up to 120” available
• Various attachments available: Fixed Flanges, Floating Flanges (Vanstone), RF Flanges, Weld Nipples
• Universal and Pressure Balanced Joints are available
