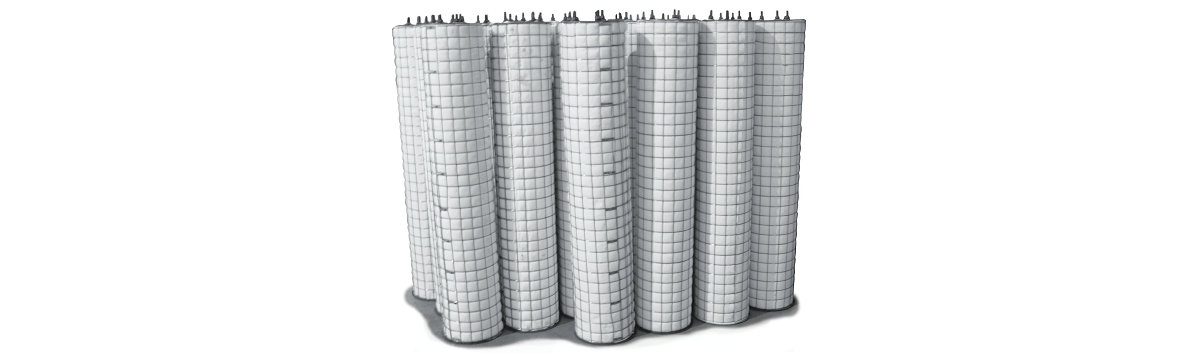

The Fibler Coalescer is designed to remove aerosols, fine particulate contaminants, water and amine from natural gas streams. It utilises proprietary, high performance microfiberglass coalescing media in a pleated configuration to improve performance.

Performance & Specifications

• Absolute Micron Rating: 0.3 micron absolute
• Water Removal Efficiency: 99% to 99.9%
• 100% removal of Solids & Liquids Larger Than 0.3 micron
• Maximum Temperature: 100 C
• Initial Pressure Drop: Lower than 2 psid
• Recommended Change out: 15 psid
• Inlet Water Concentration: up to 3% water (30,000 ppm)
• Core: Stainless Steel
• End Caps: Stainless Steel Double Open End with Viton Flat Gasket for Sealing
• Media: High Performance Pleated Microfiberglass Coalescing Media with Polyester Support, Drainage, Secondary, Tertiary and Final Coalescing Media.
• Outer Shell: Stainless Steel with Synthetic Polyester Outer Sock.

Applications

• Protect Screw & Reciprocating Compressors
• Remove Lube Oil After Screw Compressors
• Protection of Gas Turbines
• Protect Steam Generators at Power Plants & Enhanced Oil Recovery Removal
• Removal of Carried Over Amine
• Applications Near the Wellhead
• Pipeline Pigging / Black Powder
