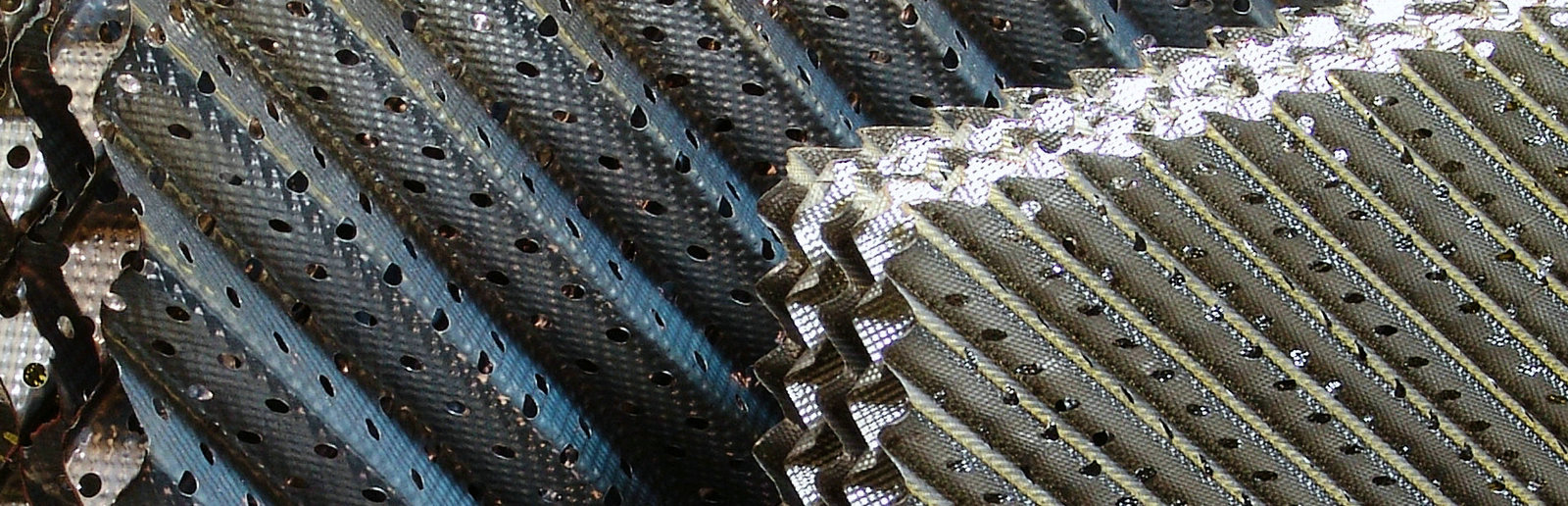

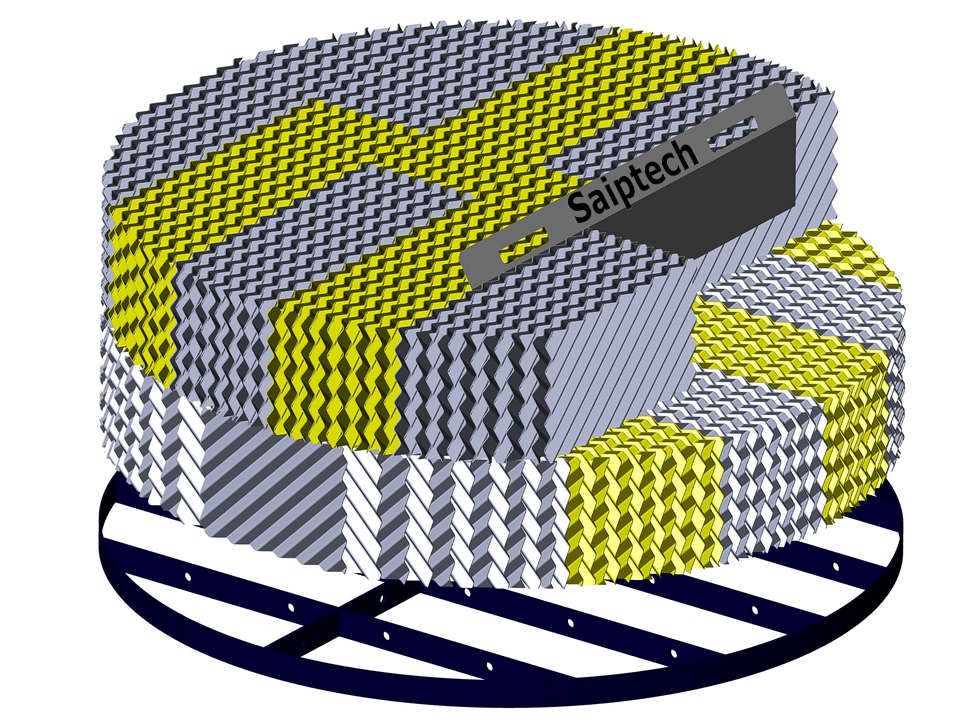

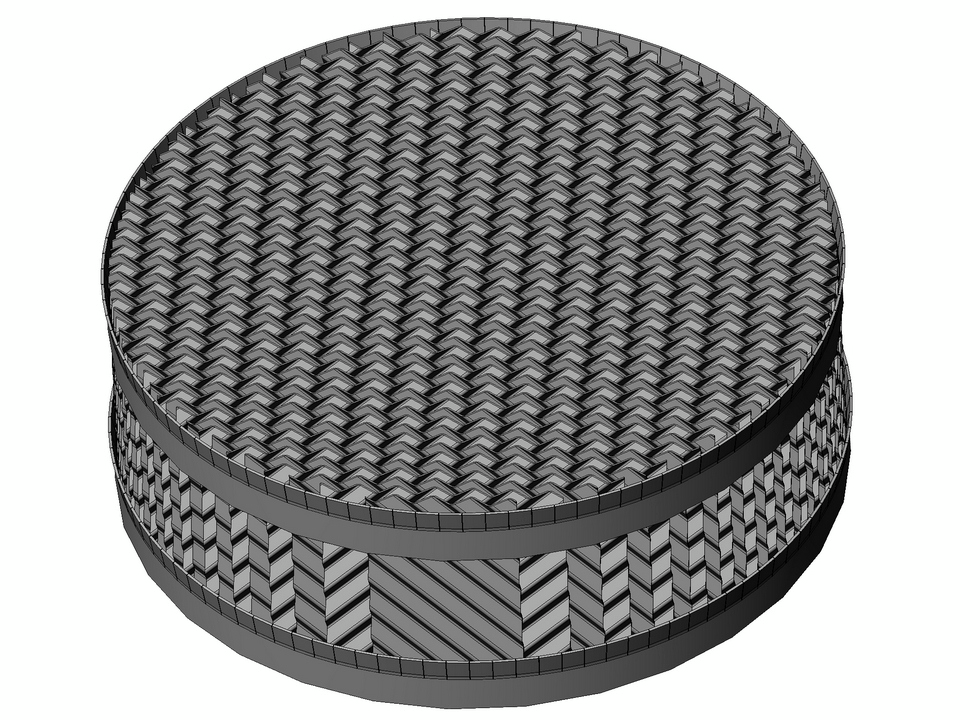

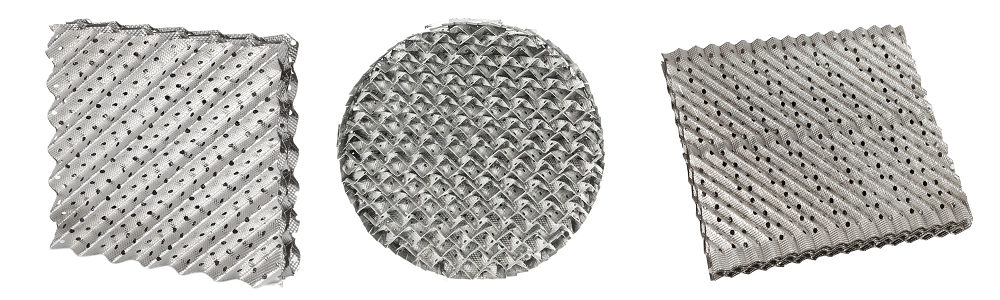

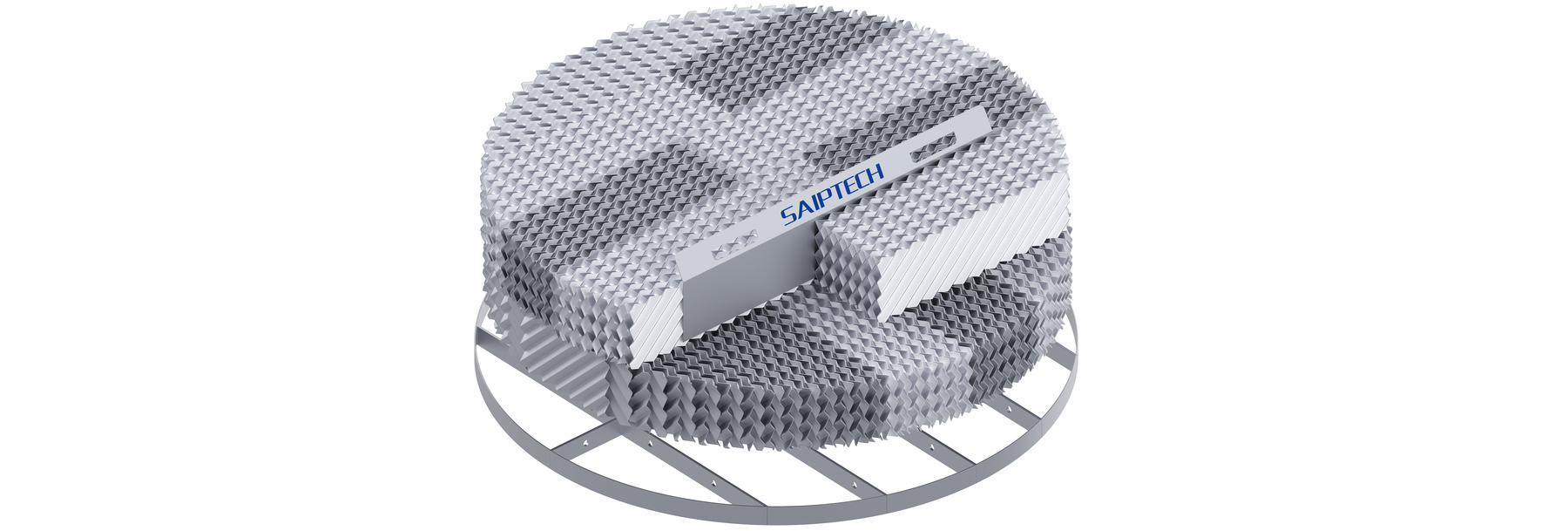

Metal Corrugate Packing

Structured packings are characterized by high performance and a flexible application concept.it has a very efficient technique and a versatile range of applications. The packings offer a high separation efficiency, good wettability and a low pressure drop and can be exactly adapted to the respective fractionation problem. They are used in the fields of distillation, absorption and liquid-liquid extraction.

They offer high separation performances, high throughputs, extensive working ranges and low pressure drops.with main application fields are in distillation, desorption, absorption, direct heat exchanges and liquid / liquid extraction.



Type

Surface Area (m2/m3)

Void Fraction (%)

Bulk Density (kg/m3)

100X/Y

100

92

260

125X/Y

125

90

320

160X/Y

160

85

384

250X/Y

250

80

450

350X/Y

350

78

490

450X/Y

450

72

552

500X/Y

500

74

600

550X/Y

550

73

620

700X/Y

700

72

650

  • Particularly suitable for vacuum columns
  • Very small liquid loads are possible
  • Lowest pressure drop per theoretical separation step
  • High separation performance through good wettability of packing surface
  • Capillary effect of special fabric
  • Minimum liquid hold-up
  • Areas of application are mainly in the separation of thermally unstable substances, which can be fractionated in vacuum of e.g. 0.5 mbar.
  • Distilled oils
  • Isomer mixes
  • Fatty acids
  • Deodorizing of salad oils
  • De-gassing of transformer oil
  • Diameters ranging from 40 mm to 11 m and wider
  • Liquid load from 40 l/(m h)
  • Operating pressures from vacuum to above 100 bar
  • Stainless steels such as 1.4000, 1.4301, 1.4404, 1.4571 1.4435, 1.4539, and others
  • C-steel
  • Hastelloy C4, C22, C276, Aluminium, Copper, Titanium, Monel, Tantalum
  • Additional materials are available upon request
